The FSI CMS Source connector imports facilities data from FSI CMS (Facilities Services International) into the Mapped graph. It syncs FSI assets and continuously brings FSI work orders into Mapped for reporting, routing, and cross-system workflows.

Use Cases

Potential use cases include:

• CMMS visibility in Mapped: View FSI work orders, buildings, spaces, and assets alongside the rest of your portfolio data.
• Asset and location context for maintenance: Relate work orders to the correct building, floor, space, and equipment so downstream apps can act on them.
• Historical and ongoing work order sync: Poll recent work orders automatically and backfill older records when needed.

Configuration

Auth Requirements

The connector authenticates directly to the FSI CMS API and also requires a segment selection so it only works within the intended portion of your FSI environment.

Field	Required	Description	Where to Find
Username	Yes	FSI CMS username	Provided by your FSI CMS administrator
Password	Yes	FSI CMS password	Provided by your FSI CMS administrator
Site Code	Yes	FSI site code used for API access	Provided by your FSI CMS administrator
Subscription Key	Yes	API subscription key	Provided by your FSI CMS administrator
Segment	Yes	The FSI segment whose locations, assets, and work orders should be synced	Select from the connector UI after entering valid credentials

Each FSI CMS4 connector can only connect to one Segment at a time.

Place Mappings

After authentication, the connector loads structured FSI locations and presents them in a mapping table. These mappings determine which places are provisioned in Mapped and which work orders and assets are in scope.

Mapping Area	Required	Notes
Building	Yes	Each mapping row must include a building. Buildings are provisioned into Mapped and used as the top-level location scope.
Floor	Optional	If included, provide both a floor name and floor level. Floors are created beneath the building.
Space	Optional	If included, provide both a space name and a space code. Spaces are created beneath the floor when available.

Only mapped locations are used for work order polling and backfill.

Asset Mappings

The Asset Mappings step discovers FSI asset categories and lets you map each category to a Mapped exact type.

• Each mapped category becomes a Thing with the selected exact type.
• Categories without a selected mapping are not included in asset sync.
• After saving asset mappings, you can trigger an asset sync for one or more selected buildings.

Advanced Options

Option	Default	Description
Work Order Polling	Off	Enables or disables scheduled work order polling. When enabled, the connector polls FSI every 2 minutes.
Historical Data Backfill	Date range defaults to last 7 days	Lets you sync historical work orders by date range or by specific work order IDs. Backfill does not interrupt the regular polling cycle. This must use the FSI Work Order Id.

Mapped Concepts

FSI CMS Data	Mapped Entity	Notes
Structured building location	Building	Provisioned from place mappings; receives an FSI external identity.
Structured floor location	Floor	Created when floor data is included in the mapping row.
Structured space location	Space	Created when space data is included in the mapping row.
Asset record	Thing	Exact type comes from the Asset Mappings configuration; includes serial number, location, and FSI asset identities.
Asset category / model details	DeviceModel	Added to the asset when model information is available.
Asset manufacturer	Agent	Added through the asset's device model when manufacturer data is available.
Work order record	WorkOrder	Includes summary, status, priority, category, trade, dates, and FSI external identities.
Work order requestor	Person	Created when requestor information is available; email is added when present.

Sync Behavior

Function	Frequency	Behavior
Location Provisioning	On save	Creates the selected building / floor / space hierarchy in Mapped.
Asset Sync	On demand	Syncs mapped asset categories for the selected buildings only.
Work Order Poll	Every 2 minutes when enabled	Imports recently updated FSI work orders for mapped locations. On first run, it looks back 24 hours.
Work Order Backfill	On demand	Imports historical work orders by date range or by specific FSI work order IDs. Long date ranges are processed in smaller batches.

Sample Code

You can query Work Orders by the connector's ID and identify related assets and places. Read more about Work Orders.

Request Response
Copy
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
{
  workOrders(filter: {connectedDataSourceId: {eq: "your-connector-Id"}}) {
    id
    name
    description
    dateCreated
    mappingKey
    identities {
      ... on ExternalIdentity {
        __typename
        value
      }
    }
    relatesTo {
      ... on Thing {
        id
        name
        exactType
      }
      ... on Building {
        id
        name
        exactType
      }
      ... on Space {
        id
        name
        exactType
      }
    }
  }
}

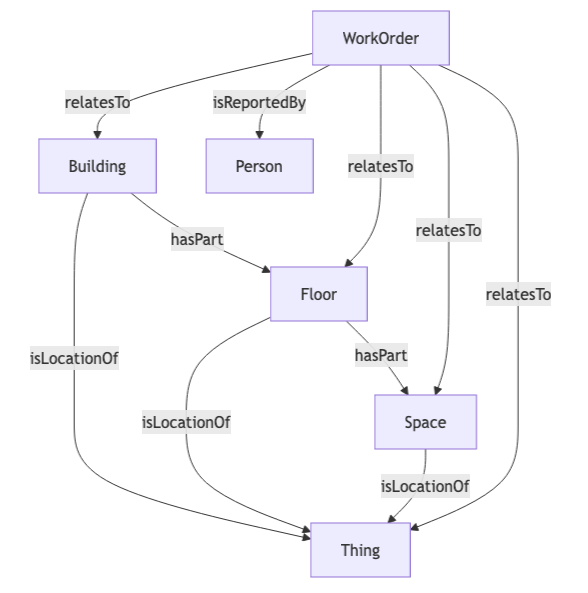

Graph Shape
